●Unique spectral balance between 220nm and275nm for inspecting total nitrogen in the water.
●Compact design and easy to assemble.
●Mass production for industrial applications with excellent thermal stability and vibration resistance.
●Optional wavelength range: 190-380nm/190-840nm.
●Unique spectral balance between 220nm and275nm for inspecting total nitrogen in the water.
●Compact design and easy to assemble.
●Mass production for industrial applications with excellent thermal stability and vibration resistance.
Items
Specifications
Remarks
Wavelength Range
190-380nm/200-1000nm
Optional upon request
Spectral Resolution
<2.5nm
Light Source
Xenon lamp
Power of Light Source
2W/10W
Communication
RS232/USB
Power Supplier
DC12V/3A
Weight
~650g
Dimension
200mmx150mmx55mm

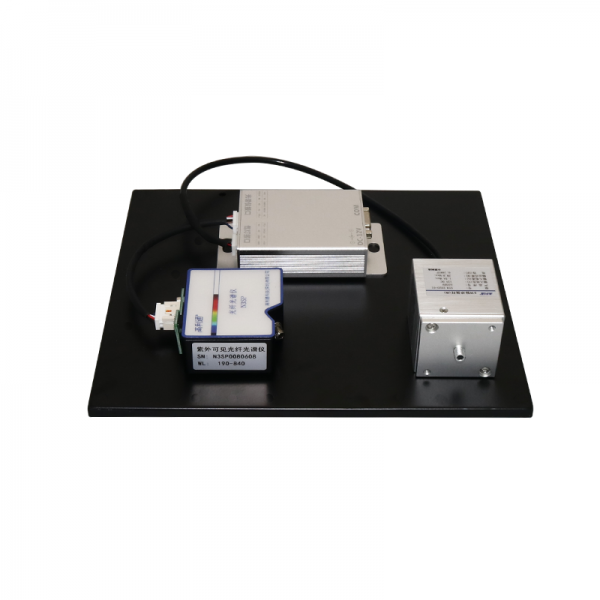

●For measuring and analyzing ammonia nitrogen, ammonium nitrate, total nitrogen, total phosphor, chlorine ion, phosphate, TOC, COD andturbidnessin water etc. A spectrum taken using the environmental water inspection module WQD1000 is shownin figure.
